LED Controller w/ Remote for Backlit Stone Lighting
LED Controller w/ Remote for Backlit Stone Lighting
This universal receiver can control; single colour, dual white colours, RGB, RGBW and RGB+CCT LED panels light. The LED panels type is selected by an onboard switch with an indicator displaying the selected mode.
$199.00
6 in stock
"Wireless control for dynamic stone backlighting – ideal for onyx and feature wall installations"
RGB+CCT LED Controller with Remote for Backlit Stone Lighting
● 5 in 1 function, used for control RGB, RGBW, RGB+CCT, color temperature or single color LED strip.
● DC12-48V input, 5 channel constant voltage output.
● Tuya smart APP cloud control, support on/off, RGB color, color temperature and brightness adjust, delay turn on/off light, timer run, scene edit and music play function.
● Voice control, support for Amazon Alexa, Google Assistant, Tmall Genie and Xiaodu voice assistant.
● Match with RF 2.4G remote control optional.
● User need set light type before Tuya smart APP network connection and match RF remote of the same light type.
● Each V5-L(WT) controller can also work as WiFi-RF converter, then use Tuya smart APP to control one or more RF LED controller or RF LED dimming driver synchronously.
● PWM frequency 500Hz, 2000Hz, 8000Hz or 16000Hz selectable.
● Light on/off fade time 3s selectable.
● Connect with external push switch to achieve on/off and 0-100% dimming function.

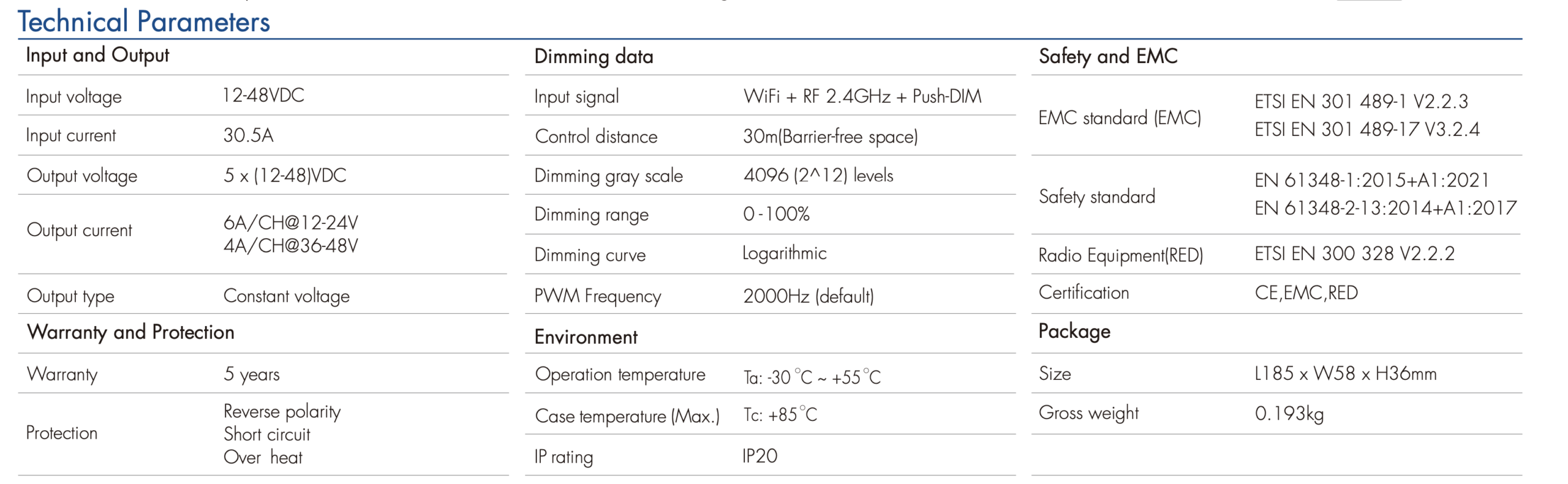

Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 100 × 30 × 20 mm |
| Input Voltage | 12-24vdc |
| Output Current | 4A/CH @ 36/48V, 5CH, 6A/CH @ 12/24V |
| Output Signal/Type | 2.4GHz |
| Output Wattage | 12v-360w, 24v-720w, 36v-720w, 48v-960w |
| Use Suitability | Indoor & Outdoor |
| Warranty | 3 years |
✅ Estimate Backlit Cost in Minutes
🔌 Step 1: Open the Backlit Calculator
📐 Step 2: Enter your project surfaces and dimensions
📄 Step 3: Download your PDF estimate
💰 What Your Estimate Includes
• LED panel quantity
• Power supplies
• Controllers
• Amplifiers (if required)
• Installation (optional)
⚠️ Important Things to Know
• Panels are calculated based on total surface area
• Accessories are automatically calculated
• Installation is optional
• This calculator is for LED panels only (stone quoted separately)
• Estimator works best on desktop
🧭 How to Estimate Your Project (Step-by-Step)
Step 1: Prepare Your Drawings
Create a simple sketch of your project with dimensions.
Step 2: Define Your Surfaces
Identify all areas to be backlit, such as:
• Benchtops
• Waterfalls
• Feature panels
• Returns
Step 3: Open the Estimator
Scroll down and launch the Project and Product Estimator.
Step 4: Draw Your Layout
Use shapes to match your project and enter accurate dimensions.
Step 5: Add Details
Apply edge profiles, waterfalls, and additional panels where required.
Step 6: Review Panel & Accessory Quantities
The system will automatically calculate:
• Total panels
• Power supplies
• Controllers
• Amplifiers
Step 7: Review Costs
Check full pricing including optional installation.
Step 8: Download Your PDF
Generate your estimate with full breakdown and drawings.
Step 9: Proceed with Your Project
• Email your PDF to welcome@bambystone.com.au for installation
OR
• Purchase materials directly from the website
✨ Let’s Bring It to Life
⏱️ How long does it take?
Most projects are completed within 4 weeks from start to finish.
Send us your plans or book a showroom visit to choose your stone. We’ll provide a detailed quote with layout drawings.
Once you're ready to proceed, you'll receive a link to schedule final on-site measurements. The site must be installation-ready.
Templating is confirmed! You will be receiving a link to schedule installation date for us to complete the project.
