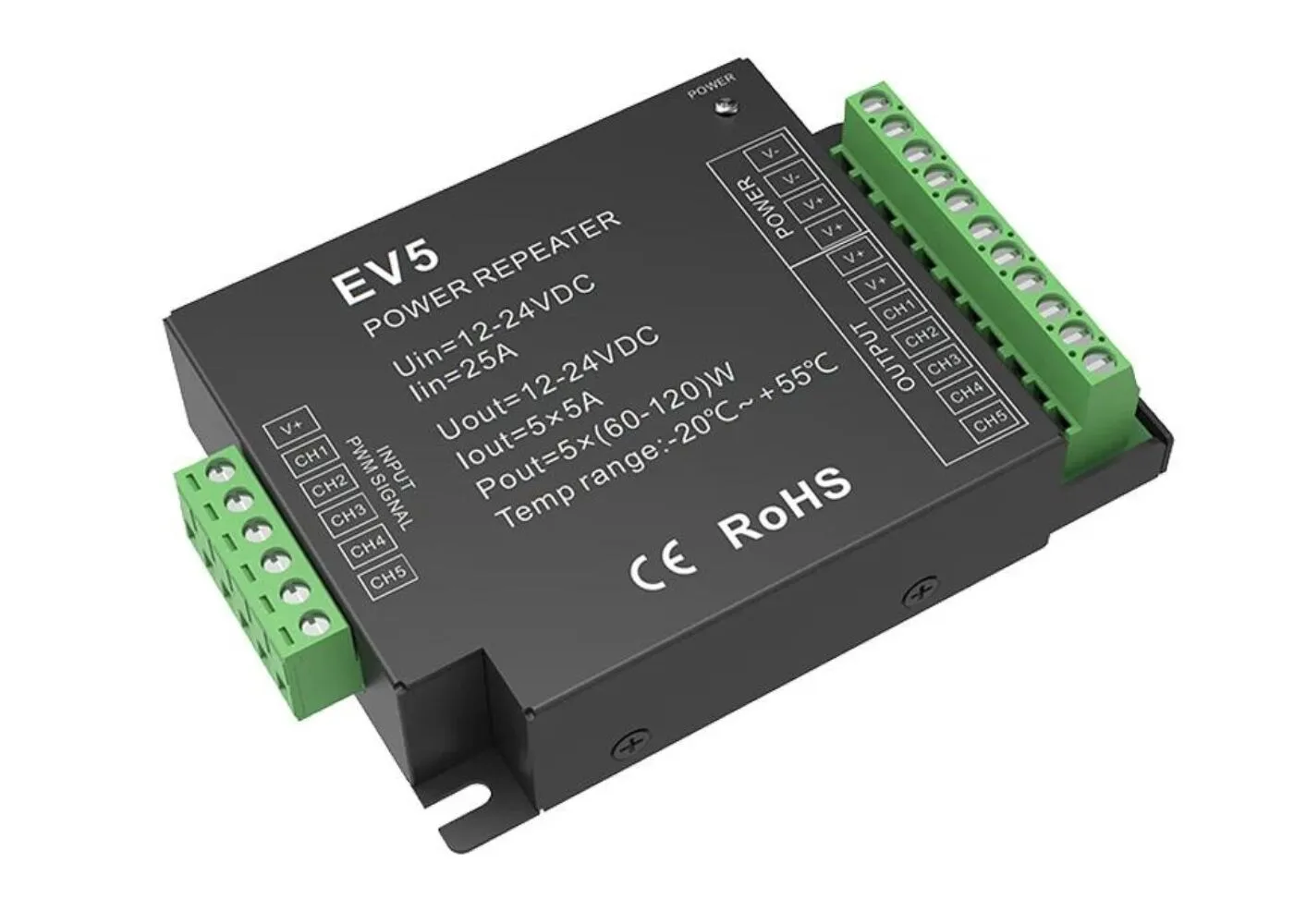

EV5 25A Power Repeater Amplifier
EV5 25A Power Repeater Amplifier Interface
EV5 25A Power Repeater Amplifier Outputs
EV5 25A Power Repeater Amplifier Diagram

Signal Repeater for Backlit Stone Lighting

We use power amplifiers to distribute energy evenly and reduce heat in our panel installations. One amplifier is used for every 12 panels.

$99.00

6 in stock

Backlit Panels, Parts & Installation – great prices ! Explore more…

SKU: PRT-RGBRA Category: Tags: , , , , , , , , , , , , , Brand:

Signal Repeater for Backlit Stone Lighting / Amplifier

We use power amplifiers to distribute energy evenly and reduce heat in our panel installations. One amplifier is used for every 12 panels.

This RGBW, RGBCCT LED strip light repeater/amplifier can expand a controller’s capacity up to 25A. By using an amplifier, all functions of the controller are replicated through to the LED strip connected to the repeater.

An unlimited number of repeaters can be connected to one controller. A single driver can be connected to both the controller and the repeater, or individual drivers can be used.

Additional information

Weight 1 kg
Dimensions 30 × 50 × 20 mm
Input Voltage

12-24vdc
Output Current

5CH, 5A/CH
Output Wattage

25A, 5 x (60-120)w
Output Signal/Type

PWM
Use Suitability

Indoor & Outdoor
Warranty

3 years
