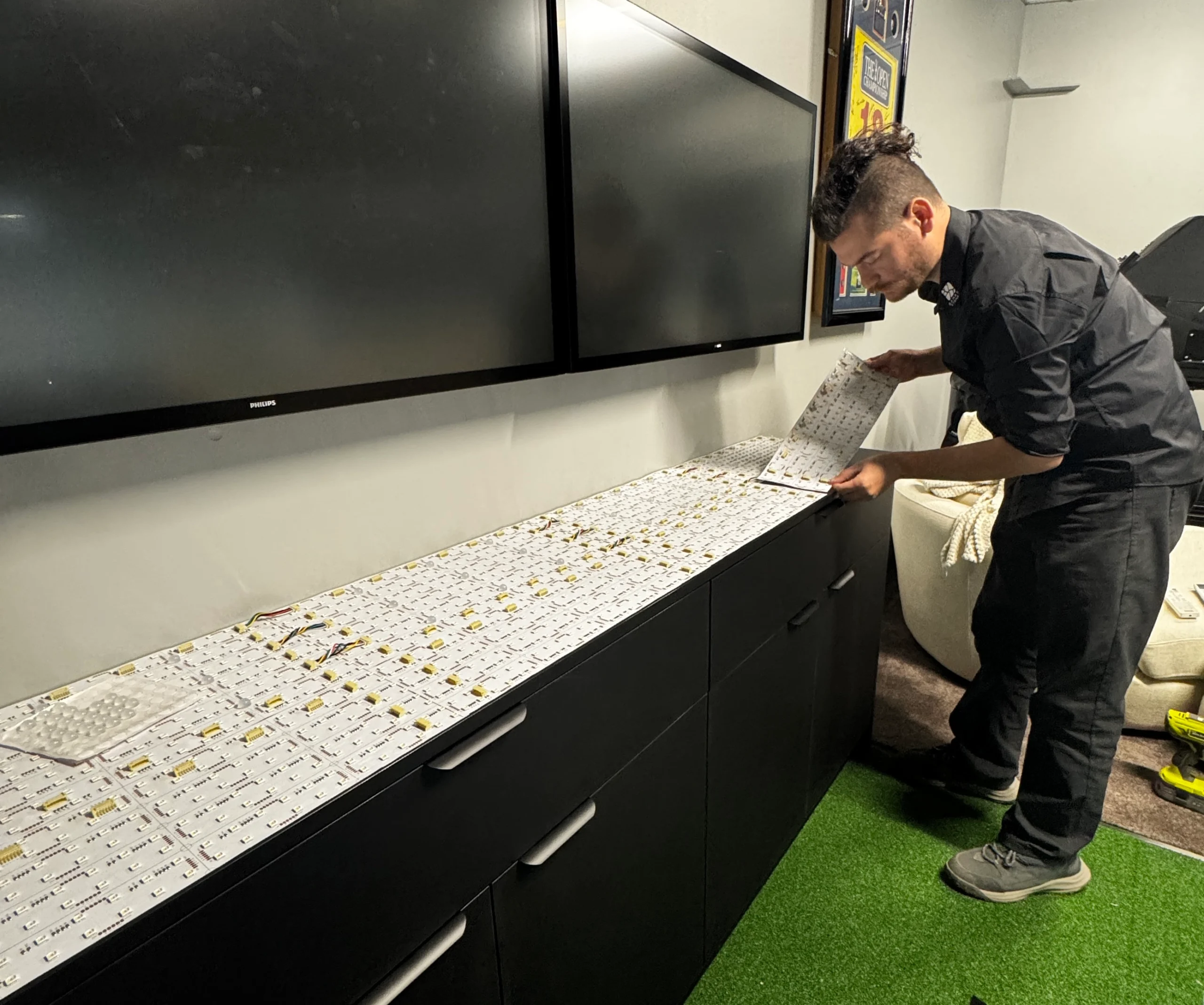

🔧 LED Backlight Installation by Bamby Stone

🔌 What Products Are Needed for a Complete Backlight System?

To complete your backlight setup, you’ll need the following components, all available from our Parts Collection:

• LED RGB+CCT Flexible Panels – specially made for stone applications
• Fan-less Power Supplies – eliminate noise and overheating issues
• Amplifiers – required when using more than 10 panels
• RGB Controllers – control colours, brightness, and effects via remote or mobile app

Not sure how many you need? Send us your layout, and we’ll prepare a tailored quote.

🛠️ Key Installation Notes:

• Panels must be installed edge-to-edge with no gaps for smooth, even lighting.
• No extra space is needed between panels and stone. Built-in spacers allow direct placement.
• Cabinetry must be completely flat and ready before installation. Bamby Stone does not supply or install base structures.
• We do not carry out removal work. Any splashbacks or existing surfaces must be removed prior to our attendance.

📩 Need a quote or project advice?
Email your plans or get in touch via our Contact Us Page and our team will take care of the rest:
https://bambystone.com.au/contact-us/

❓ Why Are These Panels & Backlighting The Stone More Expensive Than Other LED Panels or Even Some Stone Slabs?

We’re often asked why our LED panels come at a higher price compared to generic lighting products or even some natural stone slabs. Here’s why:

• ✅ Built to Last Up to 20 Years – Unlike cheap alternatives, these panels are made for long-term performance without fading, yellowing, or early failure.
• ✅ Engineered for Reliability – With a near-zero failure rate, they eliminate the risk of flickering, burnout, or uneven lighting.
• ✅ High-Powered Performance – Each panel delivers 50W of output, strong enough to illuminate even dense or darker natural stones.
• ✅ RGBWW Technology – Full-spectrum lighting with warm white, cool white, and all colours, controlled easily via remote or mobile app.
• ✅ Specifically Designed for Stone Applications – Reinforced to carry the weight of heavy stone slabs, include integrated spacers, and are ultra-thin for seamless installation.
• ✅ Supports Up to 2 Tonnes – No diffusion sheet or extra layer required, your stone can be placed directly on top of the panel.
• ✅ Flexible, Trim-to-Fit Design – Cut, reshape, or curve to suit your layout without soldering or ordering custom shapes.

These LED panels aren’t just a light source – they’re a purpose-built architectural lighting solution that enhances the luxury and clarity of your stone. They’re an essential upgrade when creating premium backlit features.

🔆 Frequently Asked Questions – Stone Backlighting (LED Panels)

What is the required distance between LED panels?
Panels must be installed flush with no gaps. Gaps cause shadows or uneven lighting.

How much space should I leave between the stone and the panels?
None. The stone rests directly on the panel thanks to built-in spacers.

What’s the distance between the spacers and is it strong enough to support the stone?
The total height including spacers is 9 mm. When the stone sits directly on the panels, they can hold up to 2 tonnes.

Do I need anything else besides the panels?
Yes. You will need Power Supply Units, an RGB Controller, and Amplifiers for larger setups.
👉 Accessories:
https://bambystone.com.au/product-category/parts/

Does Bamby Stone offer installation?
Yes, within Queensland and other states. Additional travel and accommodation costs may apply. You are also welcome to use your own electrician.

How much is installation?
$24.00 + GST per panel, including power supply setup, controller connection, and full wiring.

Can you help calculate what I need?
Absolutely. Send us your layout or drawings and we will prepare a custom quote.

Do I need to prepare anything before installation?
Yes. The base must be completely flat and structurally ready. This is the responsibility of your builder or cabinetmaker.

Do I need a backing board under the panels?
Only if the surface is hollow, like cabinetry. Solid surfaces such as plasterboard, rendered walls or FC sheet do not require any backing.
👉 Recommended backing board (6 mm, 10 mm, 12 mm):
https://bambystone.com.au/collections/marine-grade-aa-hardwood-plywood-for-backlit-stone-support/

Would the panels be accessible for maintenance if sandwiched between stone or substrate?

• Vertical surfaces: Yes. Panels can be slid out if installed on a flat backing.

• Horizontal surfaces: Access requires removing the stone first since it sits directly on the panels.

Can Bamby Stone remove splashbacks or cabinetry?
No. All demolition or removal work must be completed before our team arrives.
