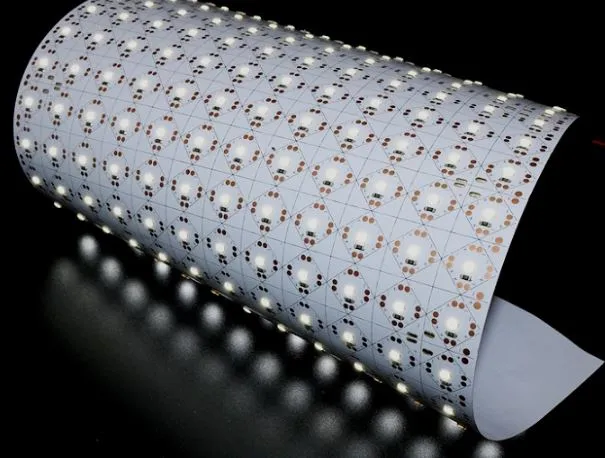

1. Suitable for advertisements, counter and bar tops, curved surfaces, low clearance applications and situations where exact measurements are not known or likely to change.
2. With high output RGBWW 5 in 1 chip, panel flex are specifically engineered to be dimmable, field customisable solution and around curvilinear shapes.
3. Easily and quickly without soldering. It allows non-site customisation which can eliminate custom order lead times.

Panel Sizes

• Length; 480mm/18.912in
• Width; 240mm/9.4488in
• Height; 1.77mm/0.069in

Absolute Maximum Ratings

• Thermal Measurement Point - Tc - 80°C/176°F
• Operating Temperature - Topr - <80°C/<176°F
• Storage Temperature - Ts - -20~+60°C/-68~140°F

🔆 Frequently Asked Questions – Stone Backlighting (LED Panels)

---

1) What is the required distance between LED panels?

All panels must be installed flush against one another with no gaps between them to ensure even light distribution. Leaving space between panels can cause unwanted shadow lines or uneven illumination behind the stone.

---

2) How much space should I leave between the stone and the panels?

None. Our LED backlight panels are specifically designed for stone applications and come with integrated spacers. This means your stone can be placed directly on top of the panels—no additional spacing required.

---

3) Do I need anything else besides the panels?

Yes! To complete your backlight system, you’ll need:

• Power Supply Units

• RGB Controller (to change light colours or intensity)

• Amplifiers (if required for large-scale setups)

👉 Click here to explore our full Backlight Accessories Collection and find what’s required based on your layout.

---

4) Does Bamby Stone offer installation for backlight systems?

Yes, we do! Our team can handle your backlight panel installation in QLD, and we also offer installation in other states with additional travel & accommodation costs.
Prefer using your own electrician? No problem—we also supply all required components directly to you.

---

5) How much does Bamby Stone charge for backlight installation?

Our flat installation fee is $24.00 per panel (ex GST). This includes all connections, power supply units, and controllers required for the backlighting system.

---

6) Can you help calculate how many panels and accessories I need?

Absolutely. Just email your layout or project plans to us via our Contact Form, and we’ll review your requirements and provide a detailed quote.

---

7) Do I need to prepare anything before installation?

Yes. It’s critical that the cabinetry or surface beneath your stone is perfectly flat and structurally ready.
👉 This base structure must be supplied and built by your builder or cabinetmaker. Bamby Stone does not provide or install this base.

---

8) Can Bamby Stone remove existing splashbacks or cabinetry to prepare for lighting or stone installation?

No. We do not recommend or get involved in any removal works. All demolition or removal must be completed before we attend site.

---

9) Why are these LED panels more expensive than some stone slabs or installation costs?

While the price of our LED panels may seem high at first glance, they’re an investment into long-term performance, reliability, and visual excellence. Here’s why our backlight system is absolutely worth the value:

• Engineered for Long-Term Durability
  Our panels are designed to last up to 20 years—far exceeding the lifespan of standard lighting products. This means you’re investing once for long-term peace of mind.

• Ultra-Reliable & Low Failure Rate
  Built with premium-grade RGBWW SMD5050 chips and robust circuitry, these panels are highly resistant to failure, eliminating the risk of flickering, hot spots, or panel burnout.

• Superior Power & Brightness
  Each panel operates at 50W output and can uniformly illuminate even dense or dark natural stones without compromise—something most budget alternatives can’t achieve.

• Full Colour Range (RGBWW)
  You get access to all colours, including pure warm and cool whites—allowing perfect tuning of ambiance and lighting effect for your project via remote or app control.

• Specifically Designed for Stone Applications
  Unlike generic LED products, these are made exclusively for translucent stone slabs (like Onyx, Cristallo, Quartzite, etc.) with integrated spacers, thermal protection, and structural reinforcement.

• Supports Up to 2 Tonnes of Weight
  Our panels can carry substantial stone slabs directly on top—no additional diffusion sheets, protective layers, or reinforcements required.

• Slim, Flexible, & Custom-Fit Design
  At only 1.77mm thin and bendable for curved applications, the design allows flawless installation in even the most complex settings—something rigid panels can’t offer.

• Field Customisable – No Soldering Required
  These panels can be trimmed, reshaped, and connected on-site without the need for special tools or long lead times—saving you from project delays and added costs.
